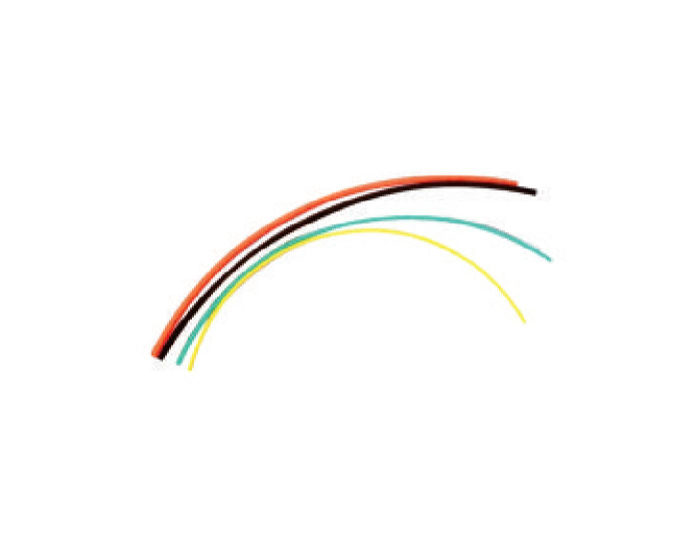

HS-2低温收缩无卤热缩套管
>收缩比率：2:1
>连续使用温度：-55°C~125°C
>最低完全收缩温度：90°C
>阻燃性能：VW-1
>无卤阻燃，符合欧盟RoHS环保指令
>颜色:黑、红、黄、绿、蓝
使用范围
HS-2/HS-2(H)系列产品广泛使用在电子、电力、军工和造船等行业，主要用于线束的保护、导线的标识、焊点的绝缘保护、电子元器件的防护、低压母线排的绝缘防护和管道防腐等。
详细介绍
HS-2/HS-2(H)系列产品标准尺寸
|
规格 |
收缩前尺寸 (mm) |
收缩后尺寸 ( mm ) |
包装长度米/盘 |
||
|
内径 |
壁厚 |
内径 |
壁厚 |
||
|
Φ0.8/0.4 |
1.1±0.2 |
0.20±0.05 |
0.4±0.05 |
0.30–0.02 |
400 |
|
Φ1.0/0.5 |
1.5±0.2 |
0.20±0.05 |
0.5±0.05 |
0.30–0.02 |
400 |
|
Φ1.5/0.75 |
2.0±0.2 |
0.20±0.05 |
0.7±0.05 |
0.32–0.02 |
400 |
|
Φ2.0/1.0 |
2.5±0.2 |
0.22±0.05 |
0.9±0.05 |
0.34–0.02 |
400 |
|
Φ2.5/1.25 |
3.0±0.2 |
0.22±0.05 |
1.2±0.05 |
0.34–0.02 |
200 |
|
Φ3.0/1.5 |
3.5±0.2 |
0.22±0.05 |
1.4±0.05 |
0.36–0.02 |
200 |
|
Φ3.5/1.75 |
4.0±0.2 |
0.22±0.05 |
1.7±0.05 |
0.36–0.02 |
200 |
|
Φ4.0/2.0 |
4.5±0.2 |
0.24±0.05 |
1.9±0.05 |
0.40–0.02 |
200 |
|
Φ4.5/2.25 |
5.0±0.2 |
0.24±0.05 |
2.0±0.05 |
0.40–0.02 |
200 |
|
Φ5.0/2.5 |
5.5±0.2 |
0.26±0.05 |
2.4±0.05 |
0.44–0.02 |
200 |
|
Φ6.0/3.0 |
6.5±0.2 |
0.26±0.05 |
2.9±0.05 |
0.44–0.02 |
200 |
|
Φ7.0/3.5 |
7.5±0.3 |
0.25±0.05 |
3.4±0.05 |
0.44–0.02 |
200 |
|
Φ8.0/4.0 |
8.5±0.3 |
0.26±0.05 |
3.8±0.05 |
0.44–0.02 |
200 |
|
Φ9.0/4.5 |
9.5±0.3 |
0.28±0.08 |
4.4±0.1 |
0.48–0.02 |
100 |
|
Φ10.0/5.0 |
10.5±0.3 |
0.30±0.08 |
4.8±0.1 |
0.50–0.02 |
100 |
|
Φ11.0/5.5 |
11.5±0.3 |
0.32±0.08 |
5.3±0.1 |
0.52–0.02 |
100 |
|
Φ12.0/6.0 |
12.5±0.3 |
0.32±0.08 |
5.8±0.1 |
0.52–0.02 |
100 |
|
Φ13.0/6.5 |
13.5±0.3 |
0.32±0.10 |
6.2±0.1 |
0.52–0.02 |
100 |
|
Φ14.0/7.0 |
14.5±0.3 |
0.32±0.10 |
6.6±0.1 |
0.54–0.02 |
100 |
|
Φ15.0/7.5 |
15.5±0.3 |
0.34±0.12 |
7.2±0.2 |
0.58–0.02 |
100 |
|
Φ16.0/8.0 |
16.5±0.3 |
0.34±0.12 |
7.5±0.2 |
0.58–0.02 |
100 |
|
Φ18.0/9.0 |
19±1.0 |
0.35±0.15 |
8.5±0.2 |
0.60–0.02 |
100 |
|
Φ20/10 |
21±1.0 |
0.35±0.15 |
9.5±0.3 |
0.60–0.02 |
100 |
|
Φ22/11 |
23±1.0 |
0.36±0.15 |
10.8±0.3 |
0.64–0.02 |
50 |
|
Φ25/12 |
26±1.0 |
0.38±0.15 |
12±0.3 |
0.68–0.02 |
25 |
|
Φ28/14 |
29±1.0 |
0.38±0.15 |
13.5±0.3 |
0.68–0.02 |
25 |
|
Φ30/15 |
31±1.0 |
0.42±0.15 |
14±0.3 |
0.74–0.02 |
25 |
|
Φ35/17 |
36±1.0 |
0.46±0.15 |
17±0.3 |
0.84–0.02 |
25 |
|
Φ40/20 |
41±1.0 |
0.46±0.15 |
18±0.3 |
0.84–0.02 |
25 |
|
Φ50/25 |
51±1.0 |
0.48±0.15 |
24±0.3 |
0.88–0.02 |
25 |
|
Φ60/30 |
61±1.0 |
0.48±0.15 |
28±0.5 |
0.88–0.02 |
25 |
|
Φ65/32 |
66±1.0 |
0.48±0.15 |
30.5±0.5 |
0.88–0.02 |
25 |
|
Φ70/35 |
71±1.0 |
0.48±0.15 |
34±0.5 |
0.88–0.02 |
25 |
|
Φ75/37 |
76±1.0 |
0.48±0.15 |
37±0.6 |
0.88–0.02 |
25 |
|
Φ80/40 |
81±1.0 |
0.55±0.15 |
38±0.5 |
1.00–0.02 |
25 |
|
Φ85/42 |
86±1.1 |
0.55±0.16 |
40±0.5 |
1.00–0.02 |
25 |
|
Φ90/45 |
91±1.0 |
0.55±0.15 |
42±1.0 |
1.00–0.02 |
25 |
|
Φ100/50 |
101±1.0 |
0.60±0.20 |
48±1.0 |
1.10–0.02 |
25 |
|
Φ120/60 |
121±1.0 |
0.65±0.20 |
58±1.0 |
1.20–0.02 |
25 |
|
Φ150/75 |
151±1.0 |
0.70±0.20 |
73±1.0 |
1.30–0.02 |
25 |
-
